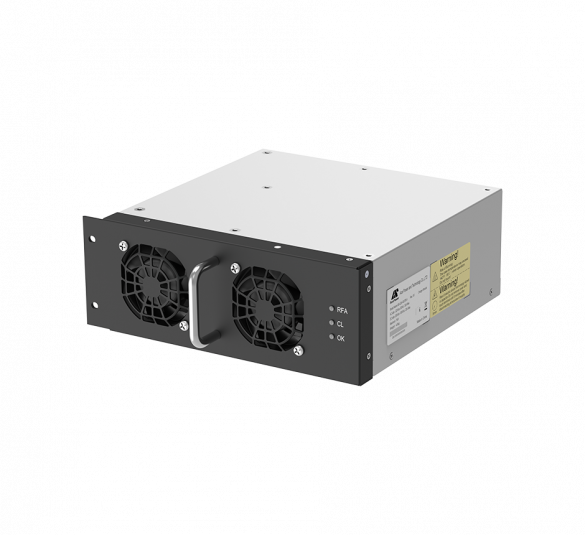

When planning to install a 7kW EV charger module, the process requires careful consideration of various factors, from choosing the right location to ensuring compatibility with electrical systems. The AcePower 7kW EV charger module offers a reliable and efficient solution for residential and small-scale commercial charging, but knowing how to install it properly ensures optimal performance and longevity. Here are the key installation considerations.
Choosing the Right Location for Your 7kW DC Charger Module
Before proceeding with installation, the location of the 7kW DC charger module must be selected carefully. The module should be installed in a dry, well-ventilated space to prevent overheating and ensure smooth operation. Since the charger operates quietly with a noise level of just 49.4dB under full load, it can be placed in areas like garages or outdoor charging stations without causing disturbance. However, it’s essential to ensure that the site is easily accessible for regular maintenance and that it aligns with the local electrical grid standards. Moreover, the installation area should have sufficient space around the charger for airflow and to comply with safety regulations, ensuring that there are no obstructions that could interfere with its operation.
Connecting the Charger to the Electrical System
Proper connection to the electrical system is crucial for the AcePower 7kW EV charger module to work effectively. The charger is designed with a wide input voltage range of 90-264V AC, making it versatile for use in various regions with differing power conditions. An experienced electrician should carry out the installation, ensuring the system is connected to the power source with the appropriate circuit breakers and fuses. Additionally, the output voltage from 200V to 1000V DC should be correctly matched to the EV’s battery requirements to avoid overcharging or undercharging.
Safety Measures and Final Checks
Once the 7kW DC charger module is connected to the electrical system, safety checks are paramount. The module complies with Class B EMI standards, which help to avoid electromagnetic interference with surrounding electronics, making it safe to use in residential, commercial, and sensitive environments. It’s recommended to perform a thorough check of the wiring, grounding, and other connections before powering up the system. Regular maintenance and monitoring of the charger’s performance can help prevent issues and prolong its lifespan. Additionally, ensuring that the charger is installed by a qualified professional and following the manufacturer’s guidelines for setup and operation can further enhance safety and efficiency.
Conclusion
Installing a 7kW EV charger module is a straightforward process when following the right guidelines. By selecting an appropriate location, ensuring proper electrical connections, and prioritizing safety checks, users can maximize the efficiency and longevity of their charging system. The AcePower 7kW DC charger module offers high performance, low noise, and excellent efficiency, making it a reliable choice for electric vehicle charging. With careful installation and proper maintenance, the charger will provide consistent and dependable service for years to come. Additionally, regular inspections and firmware updates can help ensure the charger operates at optimal levels, keeping its electric vehicle ready for use at all times.
